JSF is a component oriented MVC (Model View Controller) framework that’s a part of Java EE. It comes with a small set of basic components (widgets), a templating engine, and facilities for converting and validating input. JSF strongly builds on other APIs in Java EE. Request handling is build on top of the Servlet API, binding UI components to Java code is mostly done via Java EE’s Expression Language, with the Java code being (named) CDI beans. Validation is often delegated to Bean Validation.
Hello World, from JSF
We’ll start by creating a minimal JSF application that just displays a “Hello world” on an HTML page. Like JAX-RS, JSF has to be activated first. This is done via the @FacesConfig annotation as shown below:
Next we’ll create a Java class that returns our “Hello world” string and is used by the JSF page we’ll create hereafter. The convention in JSF is to use one of such “backing” classes per page, and therefore this particular class is called a “backing bean”. A second convention is to give this class the same name as the page that it is backing, with “Backing” added to it. An example is shown below:
@Named@RequestScopedpublicclassHelloBacking{public String getHello(){return"Hello world, from JSF!";}}
The @Named annotation gives this bean a name. By default this name is the simple class name with the first letter in lower case, which means it will be “helloBacking” here. The @RequestScoped annotation gives the bean a scope, which in this case means every individual request will get a new instance of this bean and the bean will be destroyed after the request. In more technical terms we say the bean is “contextual”, which is where the C in CDI comes from.
Finally we create a page using JSF’s default template engine, which is called Facelets. Facelets pages by default have an .xhtml extension. For this example application that page will be called hello.xhtml and would look as follows:
The source of Facelets pages are XML files, so that’s why the page starts with the well known XML prolog. Note that this doesn’t mean at all that the rendered output has to be X(H)TML as well.
The html tag contains an attribute for the “h” namespace. This particular namespace is known by JSF, and it will mean that we can use all the tags (representing components) in that space, which are the simple HTML components.
In JSF we can freely mix regular HTML and JSF components, as shown above. Typically one uses the h:head tag so JSF specifically knows what the header in the document is (and can subsequently use this to insert things like stylesheets and scripts).
The #{helloBacking.hello} that we see on the page is an expression in the above mentioned expression language. It refers to the named bean that we defined earlier “helloBacking”, and to that bean’s property “hello”. Following the JavaBeans conventions the “hello” property corresponds with our “getHello()” method.

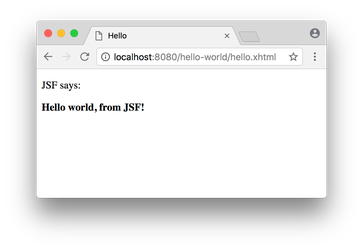

When we bundle this all together into a war called “hello-world.war” and deploy it to a default Payara server instance, we can request http://localhost:8080/hello-world/hello.xhtml in a browser, which would then render a page that looks like this:
The full source of this application can be found on GitHub, along with an automated tests that demonstrates how the application is supposed to be called:
Hi Arjan,
I am planing to use JSF as a fronted, with micro services backend. i am interested in your opinion as well as any advice you may have. Thanks in advance
Using JSF as a front end is certainly possible with a micro-services backend, but everything depends of course on the type of application. An administrative intranet type of application is ideal to be implemented by JSF, and a publicly accessible application with many thousands of concurrent users mainly displaying information is not very suited for JSF.
You will need a ‘micro-service’ which will act as the controller and which contains all the JSF logic. This one can call the other micro-services for the business logic. That way, you keep each micro-service focussed on a specific task/function.
When your JSF application is very large, you can modularize it using the principles of Self Contained Systems (SCS) where you make the switch from one application to the other seamless by using a Single Sign-On)
4 minutes
Hi Arjan,
I am planing to use JSF as a fronted, with micro services backend. i am interested in your opinion as well as any advice you may have. Thanks in advance
Hi,
Using JSF as a front end is certainly possible with a micro-services backend, but everything depends of course on the type of application. An administrative intranet type of application is ideal to be implemented by JSF, and a publicly accessible application with many thousands of concurrent users mainly displaying information is not very suited for JSF.
You will need a ‘micro-service’ which will act as the controller and which contains all the JSF logic. This one can call the other micro-services for the business logic. That way, you keep each micro-service focussed on a specific task/function.
When your JSF application is very large, you can modularize it using the principles of Self Contained Systems (SCS) where you make the switch from one application to the other seamless by using a Single Sign-On)
Regards
Rudy
